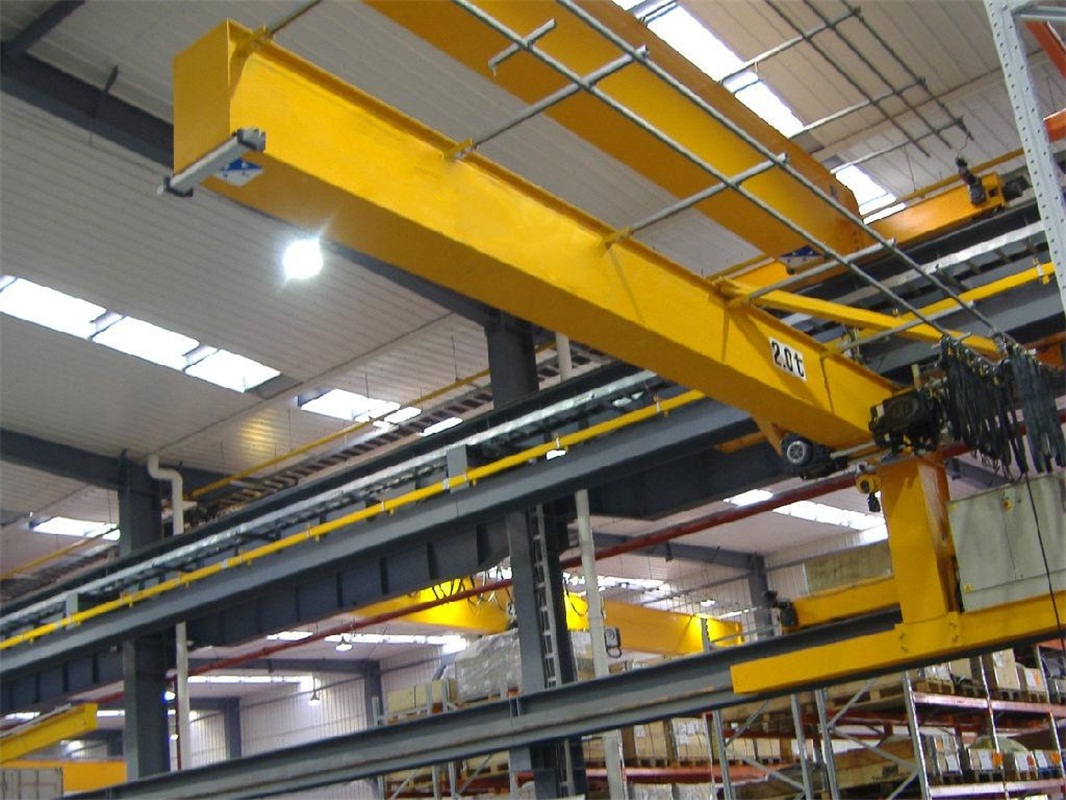

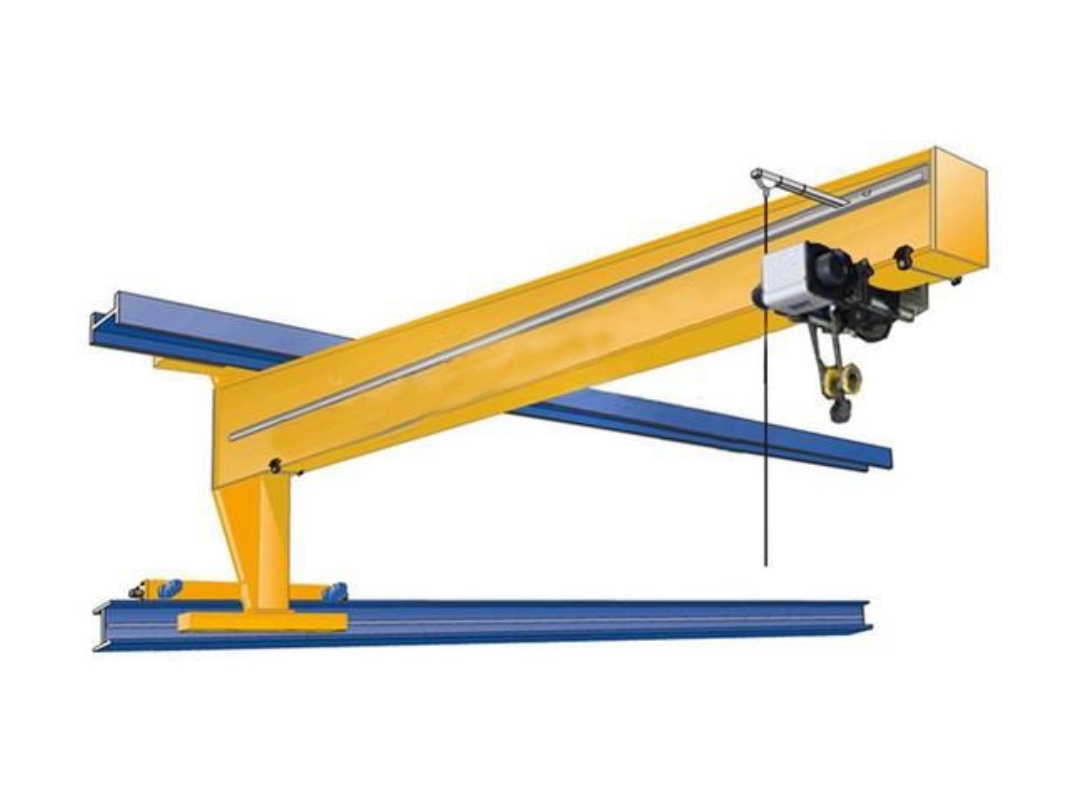

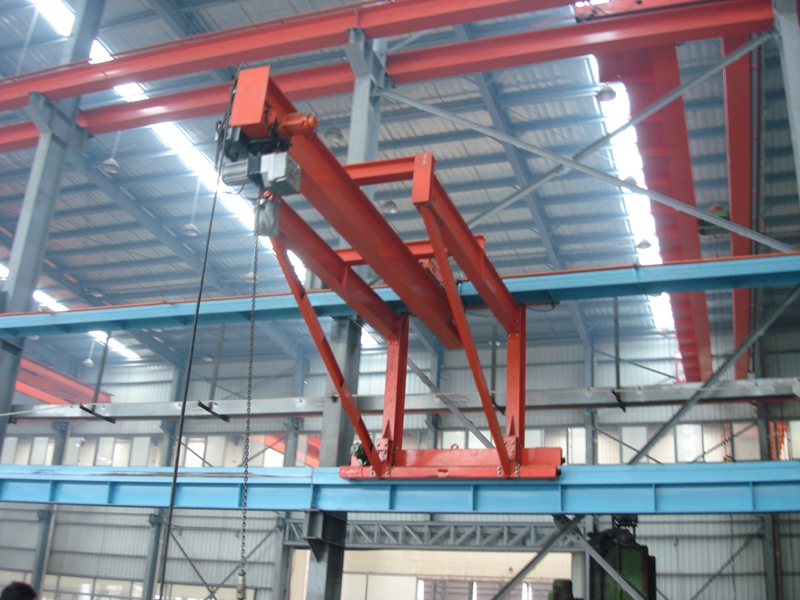

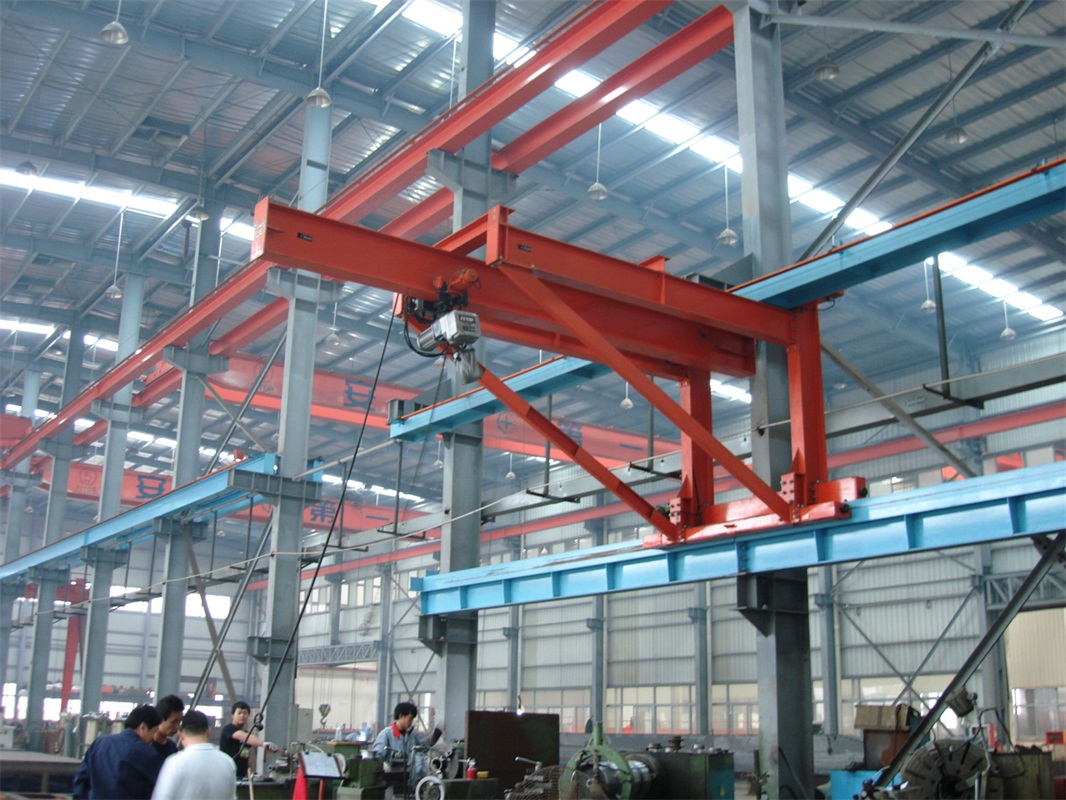

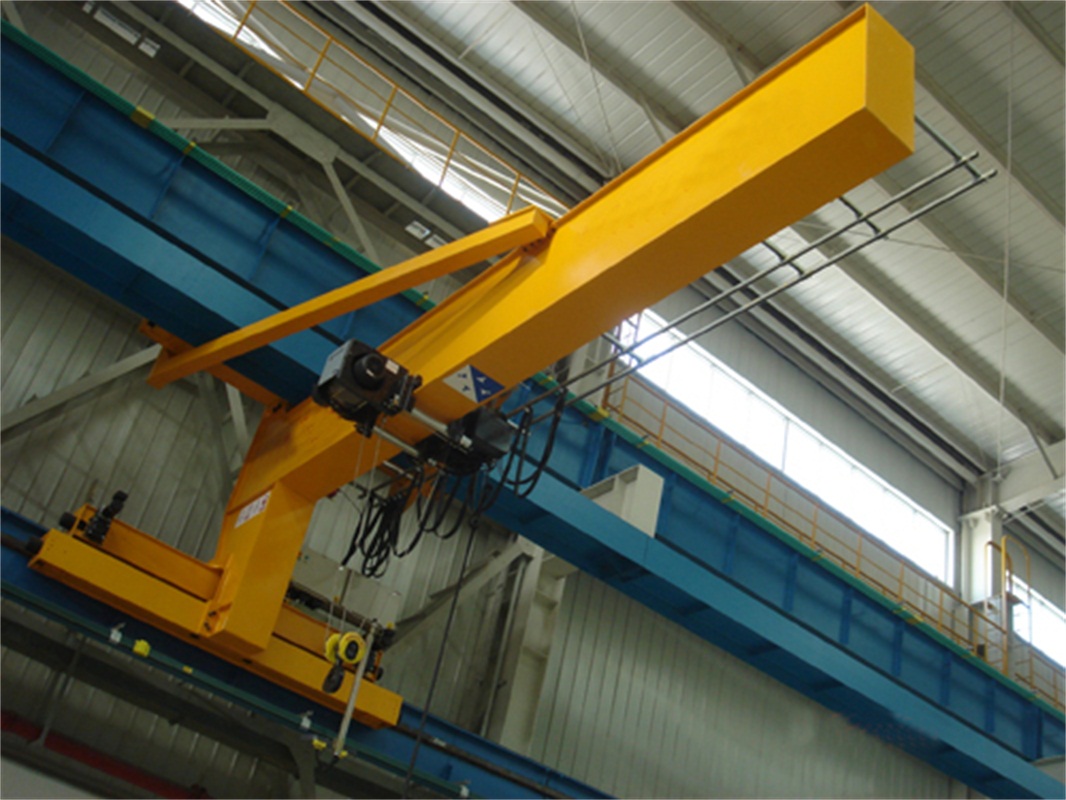

Wall traveling jib crane
If you want buy this product,You can contact us via the contact details below
Wall traveling jib crane is a small and medium-sized lifting equipment, it has special structure and can be operated in three-dimensional space, especially in short distance, dense occasion. It is widely used in immobile places like workshop, warehouse and dock.
Loading capacity: 0.5~5 t
Lifting height: 2-20 m
Jib length: 2~10 m
Slewing degree: 0~150°
Power supply: 220-440V,5 0/60HZ, 3Phase
Application: lifting molten metal Factory, warehouse, workshop, wharf.
Feature
1.Installation with high strength bolt connection
2.Convenient in operation,safe and turn to flexible
3.Low noise,commodious cabin and good looking
4.High quality and efficiency, competitive price
5.Reasonable and simple whole structure,Light self-weight, conform to the state standards
6.Inexpensive handling systems doesn't require modification of the building structure around
Technical Parameter
| Loading capacity (T) | 0.25 | 0.5 | 1 | 2 |
|---|---|---|---|---|
| Beam length (mm) | 2000~6000 | |||
| Lifting height (mm) | 2000~6000 | |||
| Lifting speed (m/min) | 8; 8/0.8 | |||
| Traveling speed (m/min) | 10; 20 | |||
| Turning speed (r/min) | 0.76 | 0.69 | 0.6 | 0.53 |
| Turning degree | 180° | |||
| Working class | A3 | |||
| Power source | 380V, 50HZ, 3 phase (or other standard) | |||
| Working temperature | -20~40°C | |||
| Control model | Pendent push button control or remote control | |||
