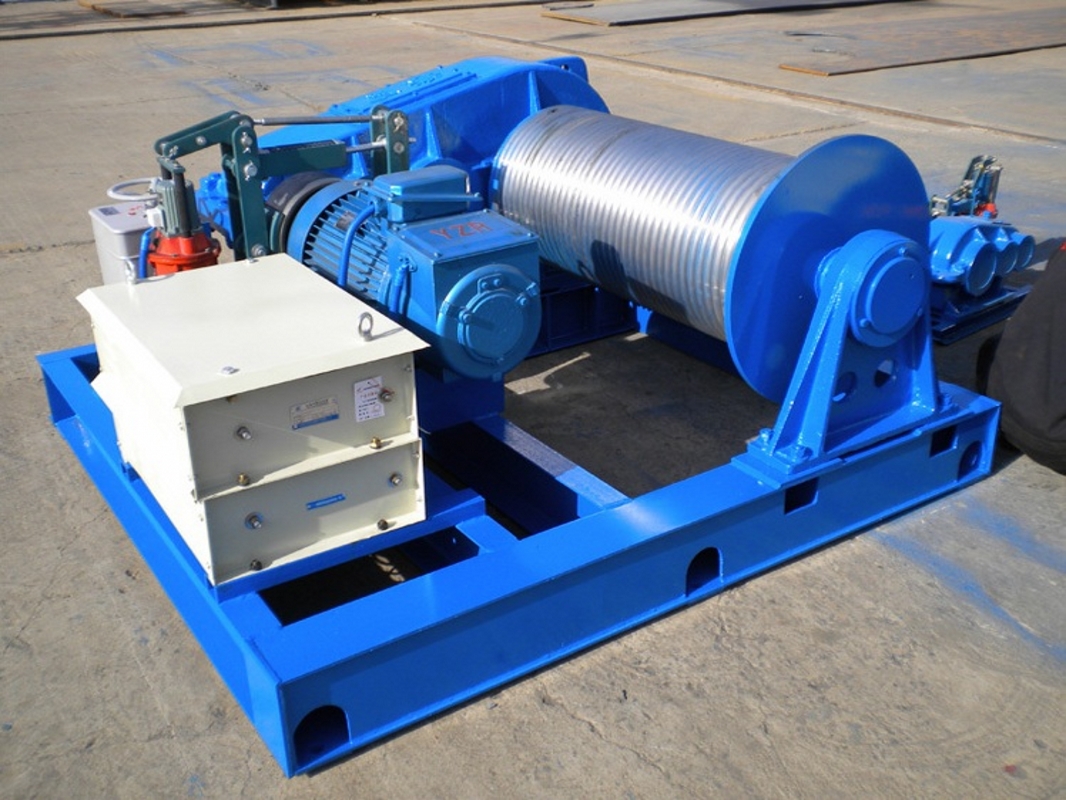

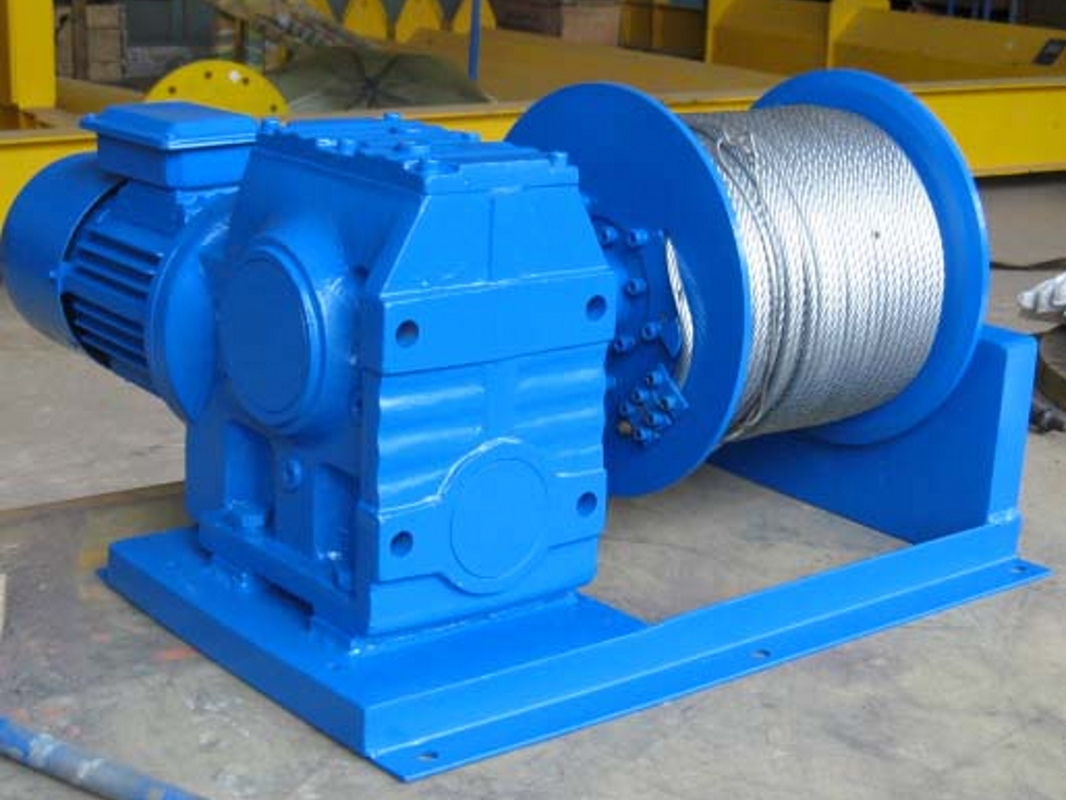

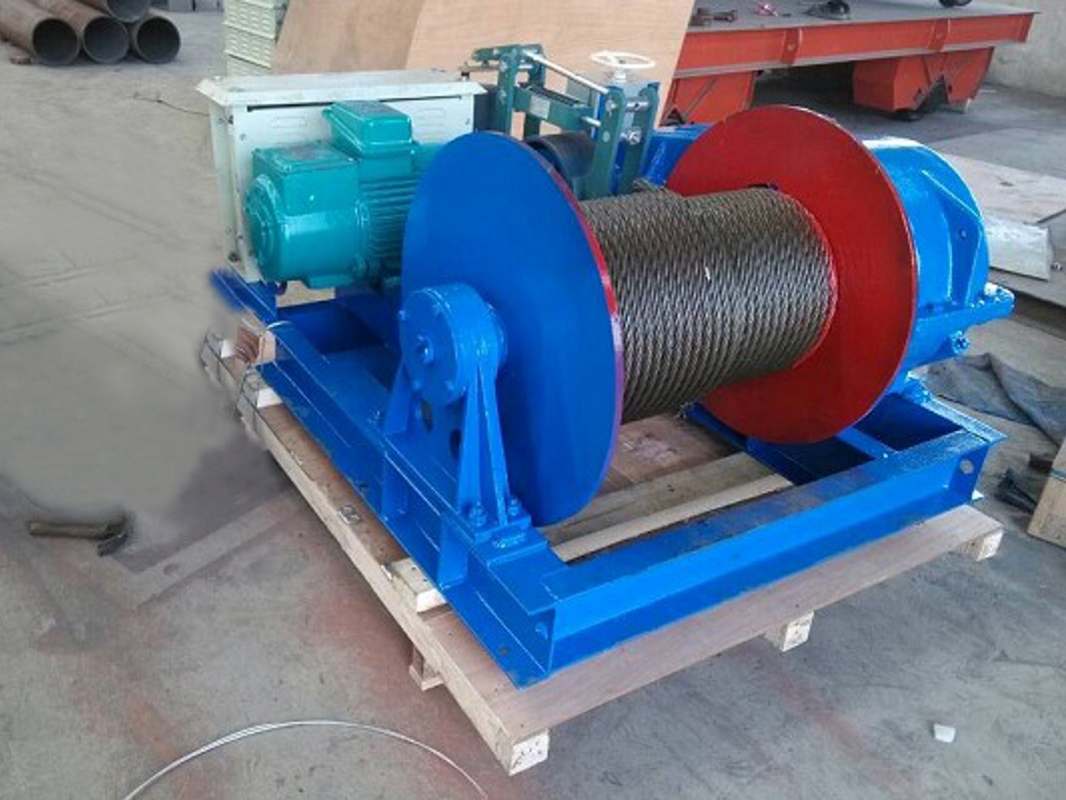

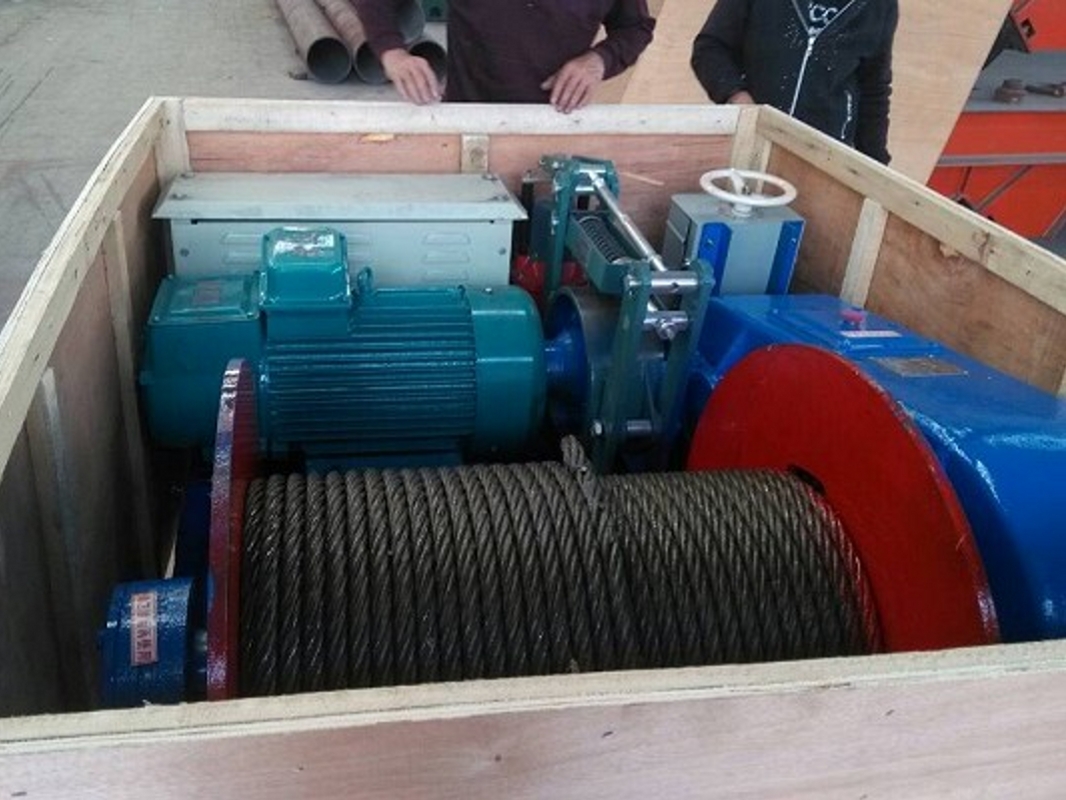

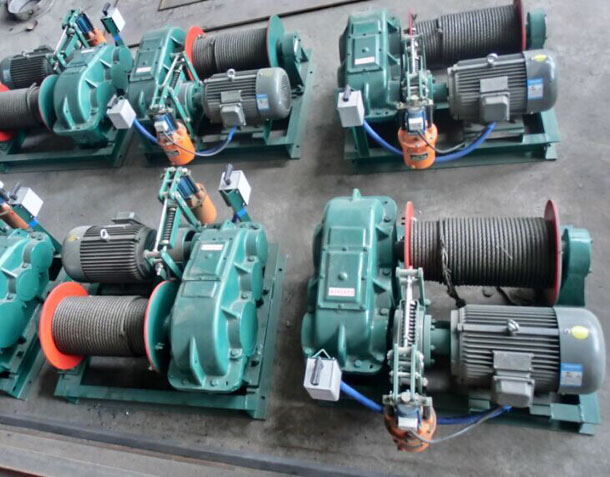

High Speed Electric Winch
If you want buy this product,You can contact us via the contact details below
Load capacity: 10 ton - 100 ton
Drum capacity: 100m- 2000m
Speed: 5m/min - 20 m/min
No. of drum: single or double
JK Electric Winch (windlass) is an equipment which is powered by man or engine power to drive the drum roll and the steel wire wind the drum roll. It can lift the material by vertical, horizontal or leaning directions. JK Electric Winch can be classified into manual winch and electric winch, MOST are electric winches.
The JK Electric winch is a kind of large capacity winches from 1 - 300 ton. The winch usually is electric type or hydraulic type, with single drum or double drum. The rope capacity is from 100m-1500m. The towing winch is widely used in harbors, shipyard, port, etc.
Application
JK electric winch with high speed mainly is used for materials lifting and traction the weight drops during construction. It also used for crane as main hoists; It is the special winch of derrick and gantry frame and lifting trolley. It is suitable for construction and small equipment installation of construction mine lifting factory.
Advantage
* Compact structure and reasonable design with competitive price
* Easy to install and high quality
* Widely used in factory,mining or double beam overhead crane, gantry crane and sea port crane
* With Overload protection, shock protective, Explosion-proof performance
* High quality electric motor, with temperature sensor, convenient and reliable refueling device, strong fan, small vibration, long continuous running time
* Good reducer, compact structure, small gap, high precision, ISO5-6 levels, top brand bearing, new sealing device, good protective performance, can be in harsh environments, such as corrosion and moisture work continuously
Technical Parameter
| Model |
Rated load ( KN) |
Rated speed (M/MIN) |
Rope capacity (M) |
Rope diameter (MM) |
Motor power (KW) |
|---|---|---|---|---|---|
| JK1 | 10 | 22 | 100 | 9.3 | 4 |
| JK 1.6 | 16 | 24 | 150 | 12.5 | 5.5 |
| JIK2 | 20 | 24 | 150 | 13 | 7.5 |
| JK3.2 | 32 | 25 | 290 | 15.5 | 15 |
| JK5 | 50 | 30 | 300 | 21.5 | 30 |
| JK8 | 80 | 25 | 160 | 26 | 45 |
| JK10 | 100 | 30 | 300 | 30 | 55 |
