Electric Transfer Cart
Low Voltage Rail Transfer Cart
If you want buy this product,You can contact us via the contact details below
The KPD Rail Transfer cart is suitable for steel mill, steel structure, steel pipe, steel billets, steel ladle, construction, shipyard, chemical industry, assembly line (ring production line, loop production line), metallurgy industry (steel lade), warehouse transport, ship industry (maintenance, assemble, container transport), work piece transport in workshop, lathe transport, steel factory (steel billet, steel plate, steel coil, steel pipe, section steel structure), construction (bridge, simple building, concrete column), petroleum industry (oil pump, sucker rod and parts), energy( polycrystal line silicon, generator, windmill), chemical industry (electrolytic cell, retort etc), railway ( rail maintenance, rail welding, train tractor), etc

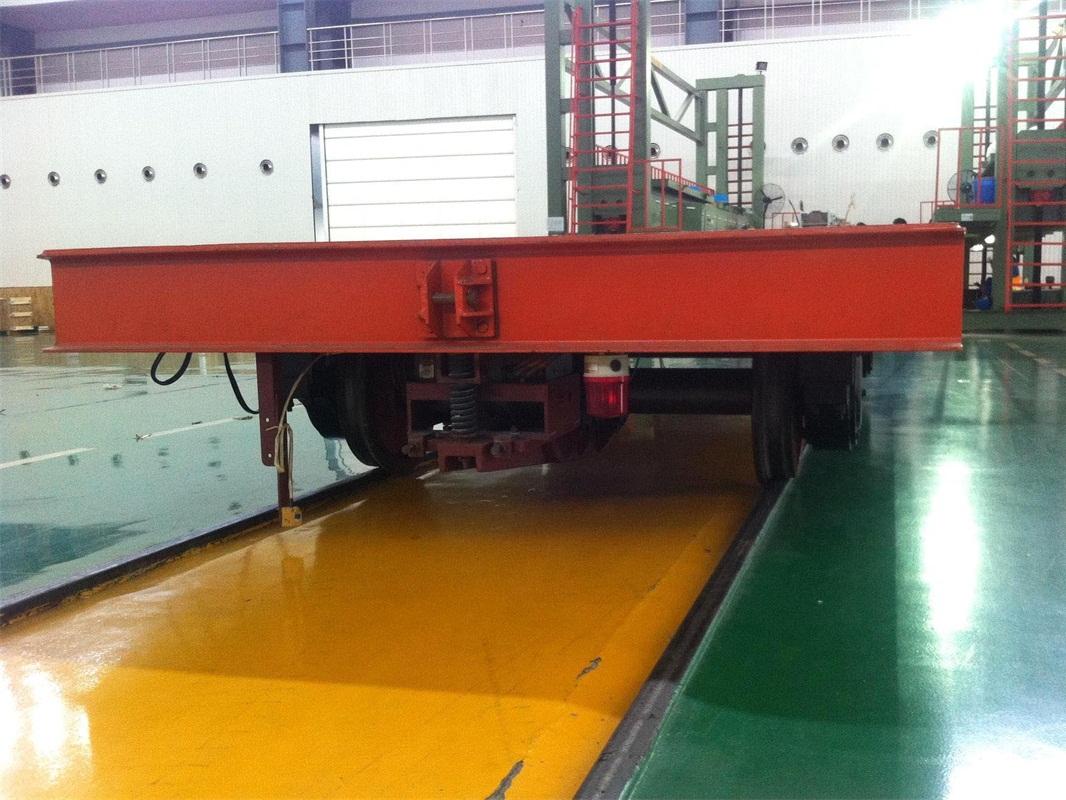

KPD transfer cart is powered from 36v two-phase rails. It is two-phase electricity on rails. the transfer cart’s wheels conduct the AC 36v on rail into the electrical appliance box at the bottom of the carts. And then the AC 36v is transfer into DC 36v and then control the DC motor through the DC control system to make transfer cart start, stop, forward and backward,etc. The voltage of operating system is 36v safe voltage. After the transformer step-down from 380v AC three-phase, the rails got the electricity.
Feature
* Safety, flexibility, high using frequency
* Long using time, long service life, no limitation of running distance
* Need to be insulated in erection, and the transformer shall be increased to raise the voltage if the running distance is beyond 80m.
Techncial Parameter
| Model | KPD-10 | KPD-20 | KPD-50 | KPD-100 | KPD-150 | |
|---|---|---|---|---|---|---|
| Rated Load(t) | 10 | 20 | 50 | 100 | 150 | |
| Table Size(mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 | |
| Height(H) | 450 | 550 | 650 | 850 | 1200 | |
| Wheel Base(mm) | 1200 | 2800 | 3200 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1435 | 1435 | 1435 | 2000 | 2000 | |
| Wheel Diameter(mm) | 400 | 400 | 500 | 600 | 600 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 | |
| Running Speed(min) | 25 | 20 | 20 | 20 | 18 | |
| Motor Power(kw) | 2 | 2.5 | 5.5 | 11 | 15 | |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 | |
