Single Girder Overhead Crane

If you want buy this product,You can contact us via the contact details below

Overhead Crane Specification
1. Load capacity: 1 t to 50 t
2. Span: 10.5 m - 33 m
3. Lifting Height: 6 m - 20m
4. Structure: Box structure type
5. Certification: CE, ISO 9001
6. Power Supply: 380V, 50HZ, 3 Phase
7. Standard: GB/T 24001-2004

Single Girder Overhead Crane Description
Single girder European overhead crane is special designed for low headroom heavy load handling application. Improved hoist trolley so that lifting mechanism and trolley traveling are at same level, saving more height for lifting. This structure highly solves the problem lifting cargo in low roof clearance workshop or warehouse.
Single girder overhead crane adopts European advanced technology, designed based on international standard: FEM (Europe), DIN (Germany), ISO(International), The configurations are very advanced, such as Schneider electrical, ABM/Nord / SEW triple gear motor (three in one: motor, gear box, brake), galvanized high strength wire rope, self-adjusted disk brake, hard tooth reducer, programmable lifting limit switch, and so on.

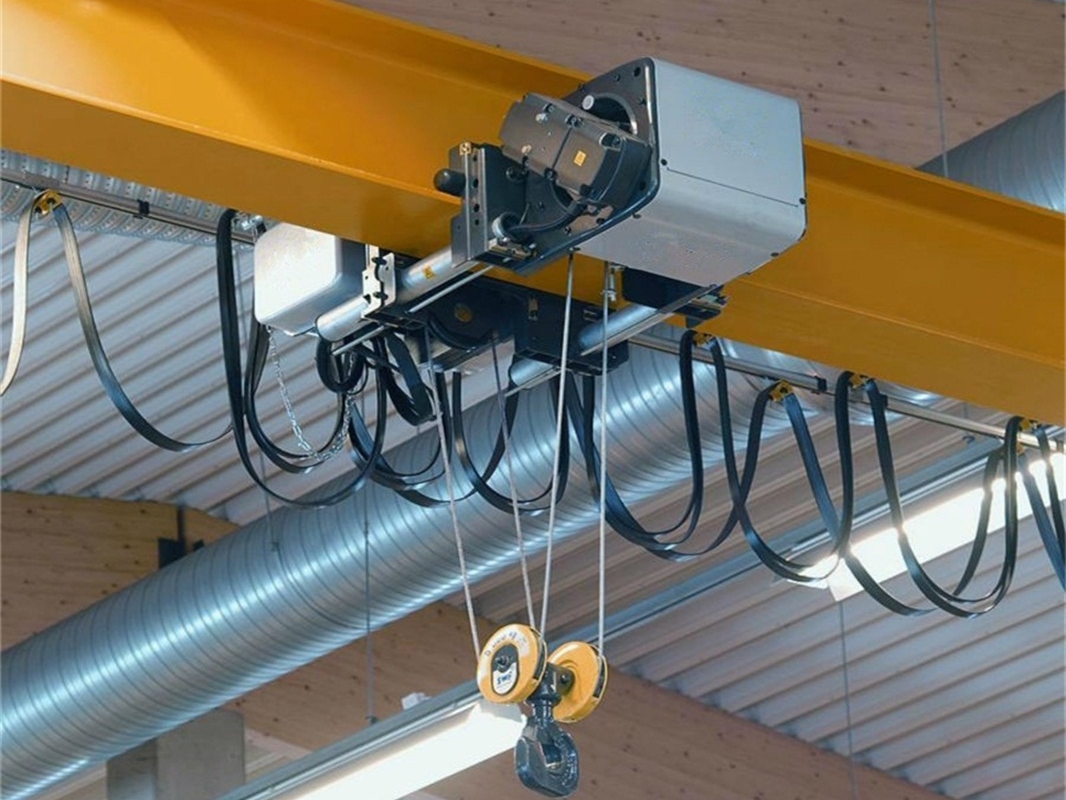

This Europe style overhead crane is of remote control with single cable "C" track festoon system; normally, we use Europe Realm (OHM) brand
Compared with the general LD bridge crane, its weight is reduced about 15-30%, the maximum wheel pressure is reduced by about 10-35%, based on assimilating advanced technology,the single girder overhead crane takes modular design theories, modern computer technology, new material and technology and has features in strong rigidity, light dead weight, low power, outstanding design, save energy and environment protection.
Single girder overhead crane can be applied in machinery production, assembling, petrochemicals, warehouse logistics, electric power construction, paper making and railways, etc.
Single Girder
 Overhead Crane Feature
1. Increase the lifting height, Working in low headroom without enough space above the main girder
2. Low dead weight of computerize optimized box section
3. Aluminum alloy made drum shell, light weight, corrosion resist
4. Lifting drive units complete seal lubricate design, free maintenance
5. Traveling and lifting motors use closed type transmission gear, low noise, maintenance free
6. Modularized electrics, multiple protection, safe operation
7. Sensitive limit switch, automatically stop lifting and traveling when reach distance limit
